Product Overview
This 24-Key controller has four standard 4-pin RGB outputs. Compatible with any Diode Dynamics RGB LED products. It is simple to reconfigure if necessary. The power input plug should be wired to 12 volts.

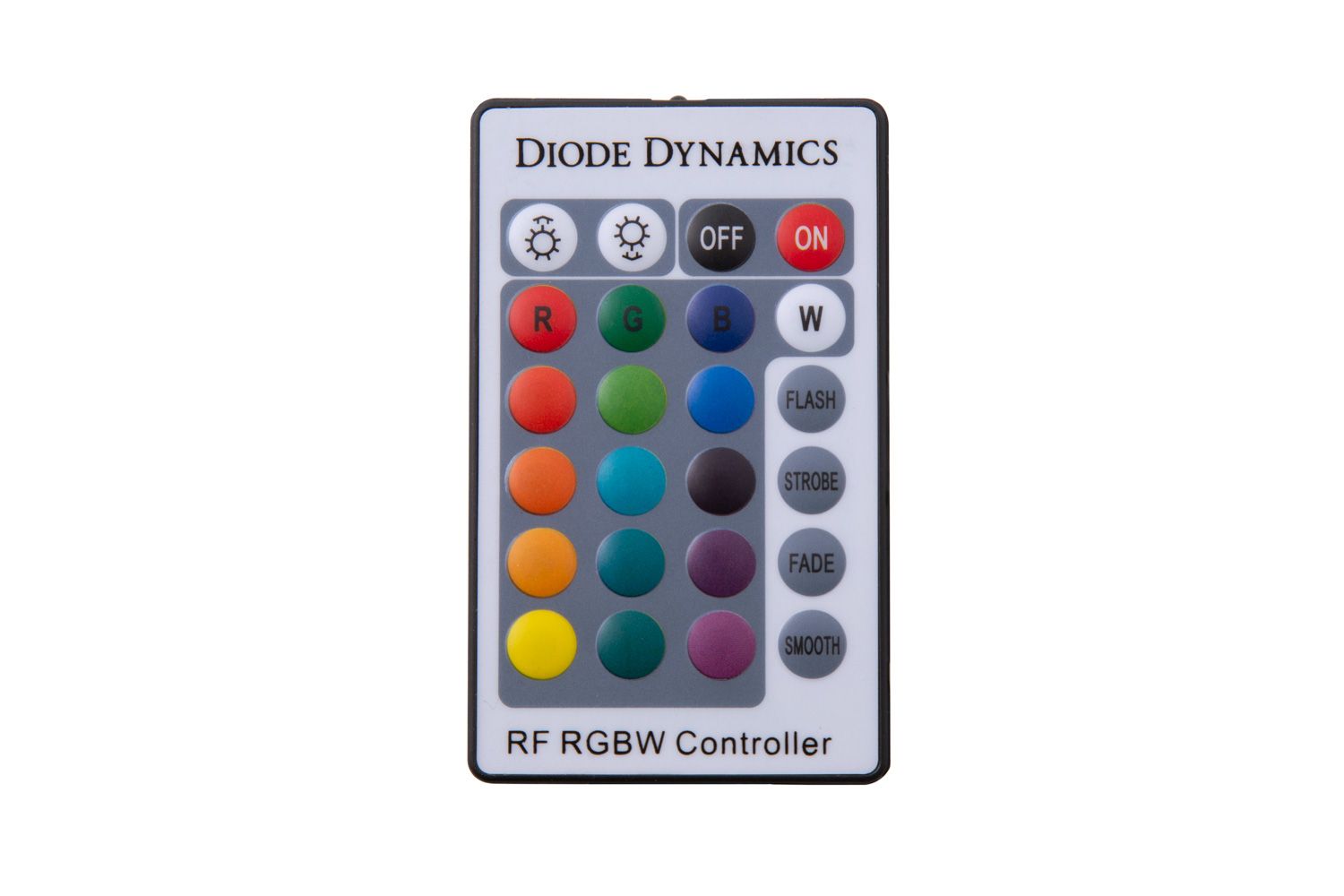

The remote is a radio-frequency remote, so it can be controlled from anywhere up to 50 feet away from the controller module. It will not interfere with other radio frequencies. It uses one CR 2025 3V battery.
This controller will power any common-positive 12V RGB lighting products. It is the most reliable, low-cost controller on the market! It is waterproof, for extreme durability, even in the toughest automotive conditions.
Included
- One waterproof RF RGB controller 24-Key
- One input power wire
- Four output wires
- One remote control
- One CR 2025 3V battery
Specifications
- Battery: One CR 2025 3V
- Operating Voltage: 9-16V
- Operating Temperature: -40C to 85C (-40F to 185F)
- Intrusion Ratings: IP65 Dustproof
- Weight (lb): 0.2563
Warranty Information
3 Year Warranty
